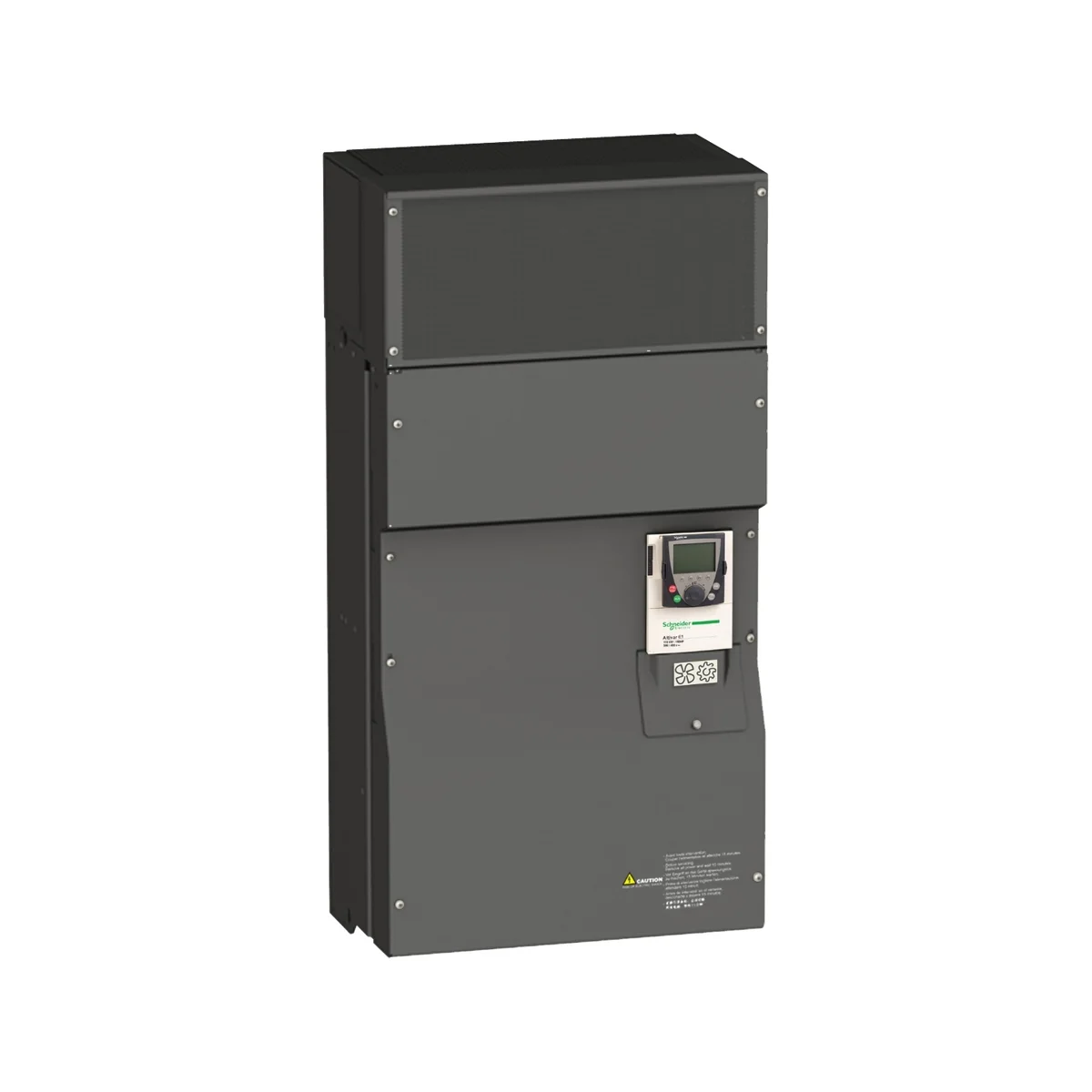

Schneider Electric ATV61HC11Y

This Altivar Process ATV61 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It includes the Modbus and CANopen protocols as standard to enhance the performance of your control systems. It works at a rated power up to 110kW / 125hp and a ated voltage from 500V to 690V AC. The incorporation of EMC filters and the observance of requirements in respect of EMC simplifies installation and provides economical means of helping ensuring that equipment meets CE marking requirements. It includes the Modbus and CANopen protocols as standard to enhance the performance of your control systems. It weighs 102kg and its dimensions are, 340mm wide, 1190mm high, 377mm deep. It has been designed for common fluid management applications in industrial and commercial buildings and infrastructures. The entire range is UL, CSA, DNV, C-Tick, NOM and GOST certified and conforms to international standards relating to electrical industrial control equipment IEC/EN 61800-2 and IEC/EN 61800-5-1. External options can be combined with the Altivar 61, braking units and resistors, DC chokes, line chokes and filters, and the Active Front End option for reducing current harmonic, EMC input filters, motor chokes and sinus filters. It is designed to be mounted in vertical position (+/- 10 °) on a wall. The Altivar 61 can increase the performance of equipment and reduce operating costs in buildings by optimizing energy consumption whilst improving user comfort.
